XM-RM7W1 & WAC-19 is a wireless functional testing suit by Xtramus, supporting IEEE 802.11ac protocol. Xtramus successfully converts the wireless traffic to the experienced wired traffic testing technology. This solution brings benefits to our customers by providing a good way to ensure the quality of their WiFi products.
XM-RM7W1 belongs to Xtramus's flexible, reliable and highly accurate XM-RM series. Like other XM-RM series cards,XM-RM7W1 needs to be used on the NuStreams chassis platform, supporting hot plug and multi-user. The Rapid-Matrix technology is able to generate Etherne tpackets with different headers, labels and headers etc. on each port.

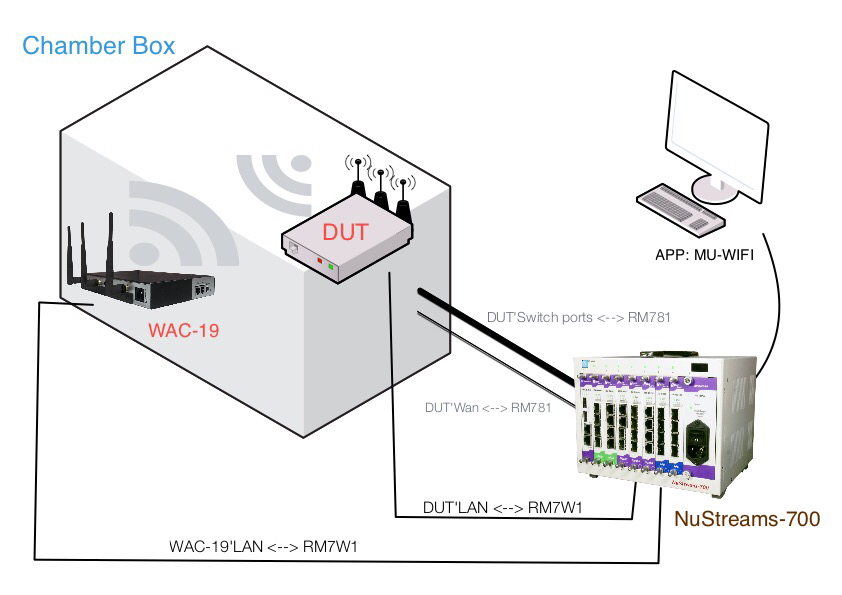

WAC-19is an assisting test router used together with the XM-RM7W1 card, to stably convert the wired traffic to the wireless traffic. WAC-19 is employs MIMO 3*3:3 transmission mode and supports 802.11a/b/g/n/ac. Its maximum transmission rate is 1900Mbps (due to rate limitation, the practically measured maximum band with is 1000Mbps).
● Supports IEEE802.11 b/g/n 2.4GHz + 256 QAM, the measured rate up to 600Mbps
● Supports IEEE802.11 a/n/ac 5.0GHz, the measured rate up to 1000Mbps
● WPA/WPA2-PSK and WEP encryption
● Supports10/100/1000 Mbps Ethernet device testing
● Wire speed generation and testing
● High performance, low cost
● Tests 4 DUTs at one time
● Supports automatically acquire/scan/fixed SSID
● Realizes the integration testing of the wired and wireless traffic testing of the DUT
● Multiple functional estimates, throughput, packet loss, rate, etc.
● Real-time data statistics per port
● Supports DUT communication and control through Telnet
| Model | XM-RM7W1 |
| Interface | 1000 BASE-TX:RJ45 x 2 |
| Frame Length | Tx Packet Length: 48 ~ 2Kbytes |
| Payload | ● BurstMode: User-defined pattern, User-defined raw data, Random ● Rapid-MatrixMode: User-defined pattern: Byte Increase/Decrease, Word Increase/Decrease, 8'0 8'1, 16'0 16'1,32'0 32'1, 64'0, 64'1, Random. (Bit is presented by 0 or 1. 8'0 means 8-bit 0,8'1 means 8-bit 1.) |
| Data Integrity/Sequence | ● 2nd level CRC check function independent from standard CRC ● Sequence miss check and frame loss check by X-TAG |
| BERT Test | Support Layer 2 BERT Test |
| Error Packet Generation | CRC (Good/Bad/None),Undersize, Oversize, Alignment Error, Dribble Error, IP Checksum Error |
Hardware Counters | Port-based Statistics Counters: ● Tx Counters per Port: Frame Count, Byte Count, Pause Frame Count, Collisions,Single Collision, Multiple Collision, Excess Collision, Tx ARP/ICMP Request/Reply ● Rx Counters per Port: Valid Rx Frame Count, Valid Rx Byte Count, Rx ARP/ICMP Request/Reply, RM ON counters, Alignment Error, Dribble Error, Undersize, Oversize, CRC Error, Data Integrity Error, IP Checksum Errors ● Tx/ Rx Rate Counter: Tx/Rx Packet Rate, Tx/RxLine Rate, Tx/Rx Utilization |
Streams Counter | Advanced Stream-based Statistics Counters: ● Tx Stream Counter Set: 32 (2Kbytes) sets by Rapid Matrix, and supports up to 512(128Byte) sets ● Tx Counters per Stream: Frame Count, Byte Count ● Rx Stream Counter Set: 1 group of 256 sets USC per port USC (UniversalStream Counter) are packet filtering rules based on: - DA - MPLS - Source Port - SA - Destination IP - Source Port - VLAN ID - Source IP - VLAN CoS |
Transmit Mode | ● Single Mode ● Burst Mode ● Continuous Mode ● Transmitting-by-time Mode |
Software Support | ● NuApps-MultiUnits-WiFi:Multi-window wireless traffic test suit ● NuCommander:Hardware control (voltage, fan speed, and temperature) of NuStreams chassis |
| Miscellaneous | ● Support cross-module latency test ● Support global command ● Different ports can be shared by different users ● Support jumbo frame ● Support hot swap |
| Application | NuApps-MultiUnits-WiFi | v0.9b023 |  |
| Firmware | XM-RM7W1_RTC_v1.0b007 | v1.0b007 |  |
| FPGA | XM-RM7W1_FPGA_v0.9b002 | v0.9b002 | |
| Product Brief | PBF_XM-RM_WiFi_7W1_V1.0_CHS | v1.0 | |
| PBF_XM-RM_WiFi_7W1_V1.0_ENG | v1.0 | |
